Hotgrips Installation

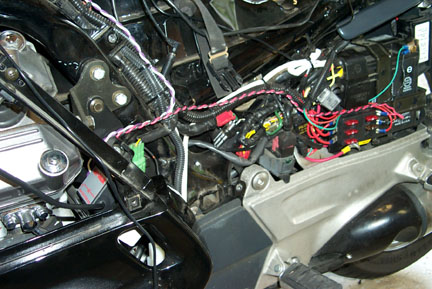

The Heat-Troller is mounted on top of my PIAA relay in the lower left. The power leads are the red and black wires running to the auxiliary fuse panel. The purple and white wires run to the grips.

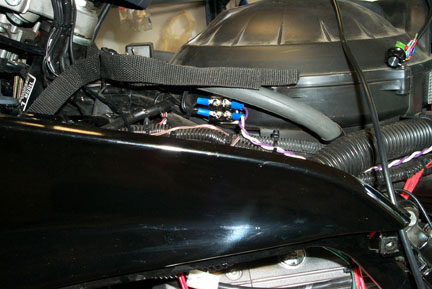

I mounted a power buss on the air cleaner housing to connect the power leads from the Heat-Troller to the leads of the Hotgrips.

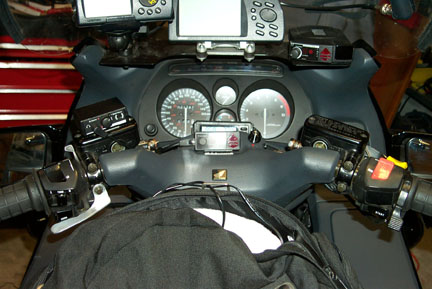

I mounted the remote power knob at shown on the steering vanity cover.

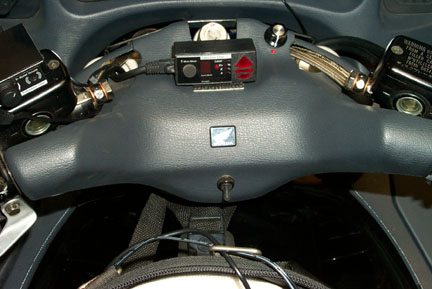

Here’s a close up of the control knob location.
