Carb removal and Cooling Hose Replacement
2/15/2003

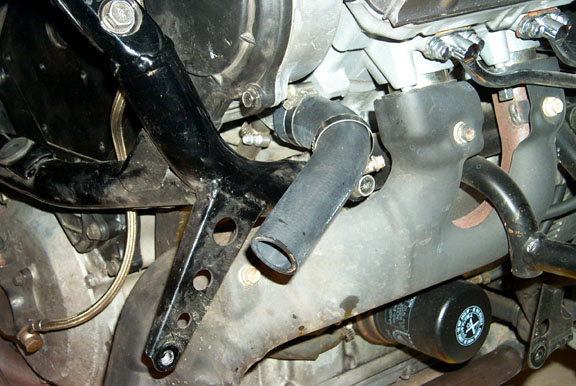

New lower radiator hose.

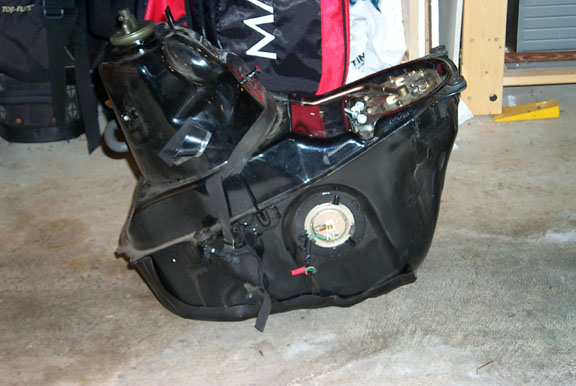

Pull the tank to get easy access to the area beneath the carbs.

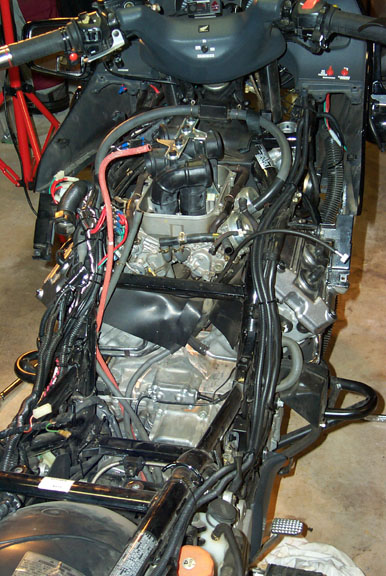

Preparing to remove the carbs.

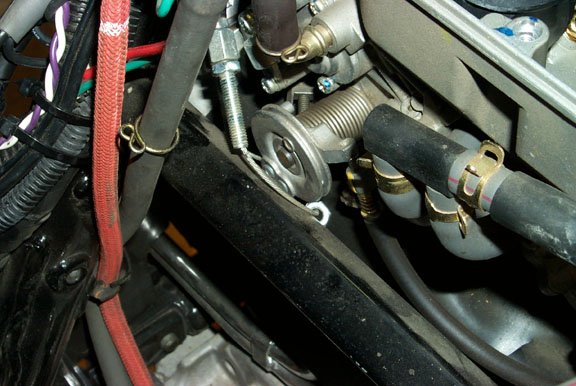

The manual says to remove the throttle lines before pulling the carbs. It’s easy after you’ve lifted them.

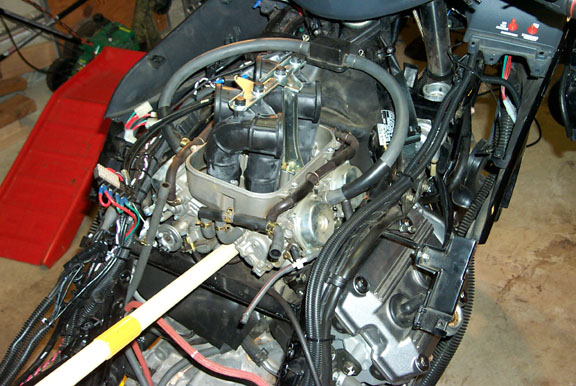

As others have done I used a broom handle to start the removal. Once they begin to move it’s pretty easy to rock them back and forth and pull them.

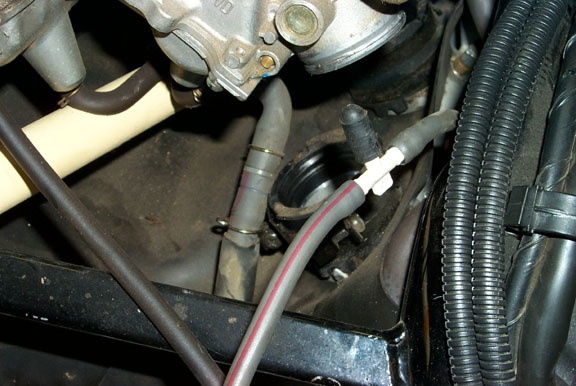

The bowl drain line has to be un-hooked before you can lift the carbs. You can also see the screws on the rubber collars in the background. Two of mine weren’t even tight!? Someone must have sub-standard job in the past on my bike!!

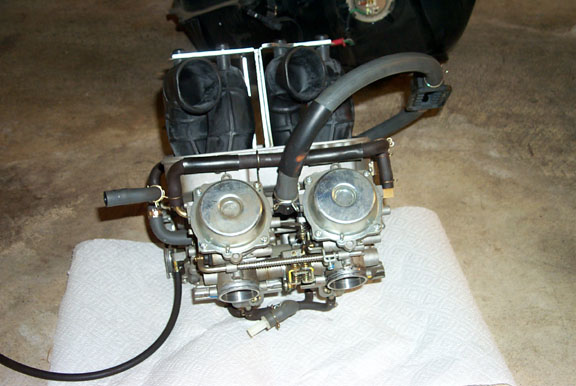

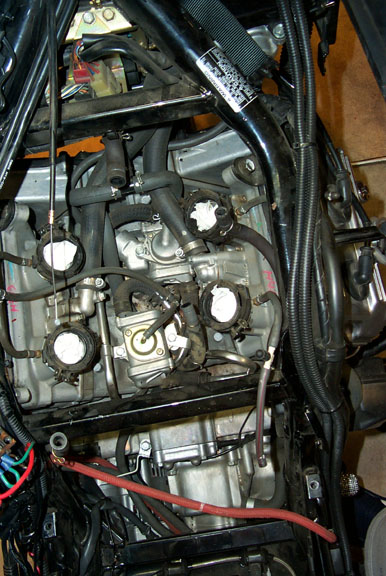

Carbs removed. You can access the rebuild page here.

You can see the other front breather hose that needs to be disconnected to pull the carbs in the upper part of this picture.

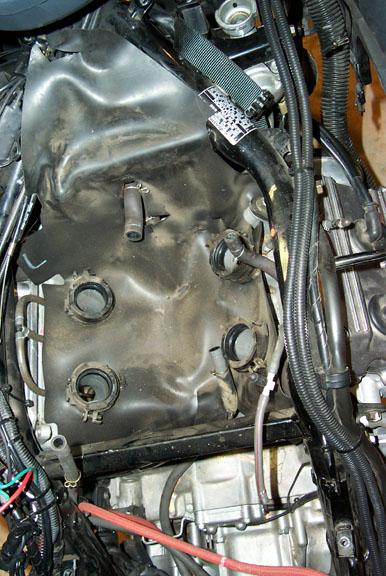

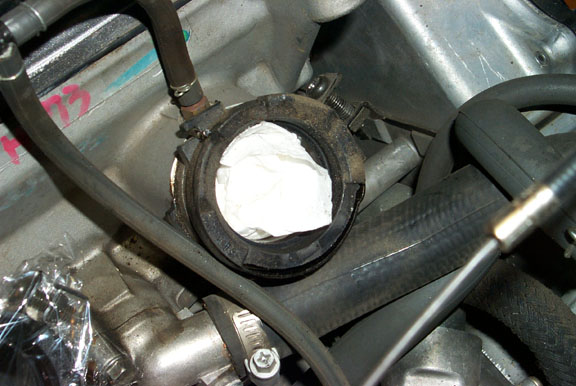

This is what you see after removing the rubber pad. Put something in the intakes to prevent crap from falling in. Click here to see the ‘after PAIR removal’ picture below. Click here to see more detailed information on removing the PAIR system.

The upper retaining straps have little pins that are <supposed> to be in the little collar slots. You can see one here at about 11 o’clock in this picture. One of the lose collars was rotated and didn’t have the pin in making it nearly impossible to reach! They should all be facing out to the sides of bike when properly installed. The lower collars can be just about anywhere since they are accessed after you pull the carbs.

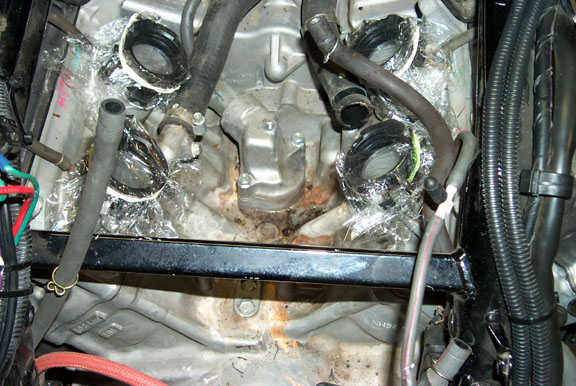

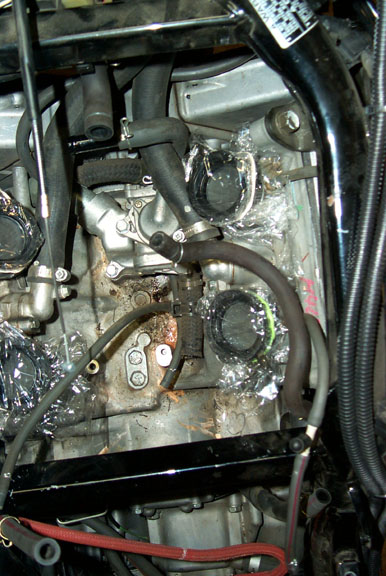

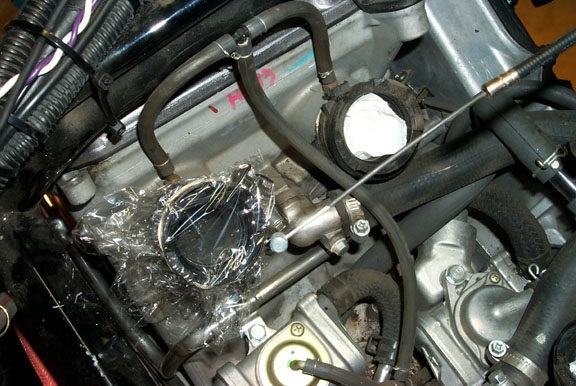

After cleaning the straps and inserting them onto new collars I installed them and covered them in cellophane before moving onto the hose replacement. There’s a fair amount of dirt and bugs in the ‘V’ of the engine.

On to the PAIR removal. I had to cut the hoses with a small hobby saw to detach the pieces from one another. I can’t believe John O was able to remove, clean and then reassemble all this stuff! It was a lot of work to just rip it out! First one has been removed here.

All the PAIR equipment removed. Look at all the room!

Close up of the grime.

Bigger view.

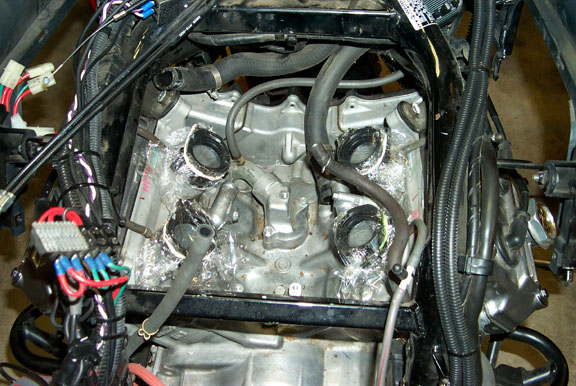

After the cleanup. Nice!!

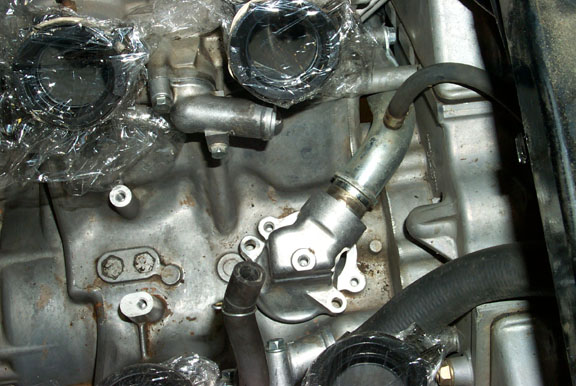

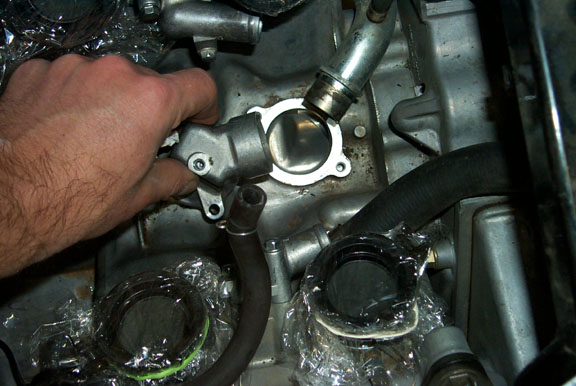

Per tip #2 on Mike Martin’s site you can remove the housing on the block. Just loosen the bolt just visible in the upper right of this photo before unbolting the two housing retaining bolts. You can then lift the housing just enough to pull it from the line.

I never would have guessed this could have been removed. WOTL, (Wisdom Of The
List), to the rescue!

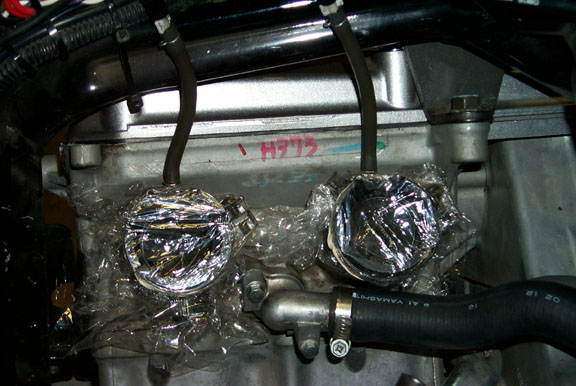

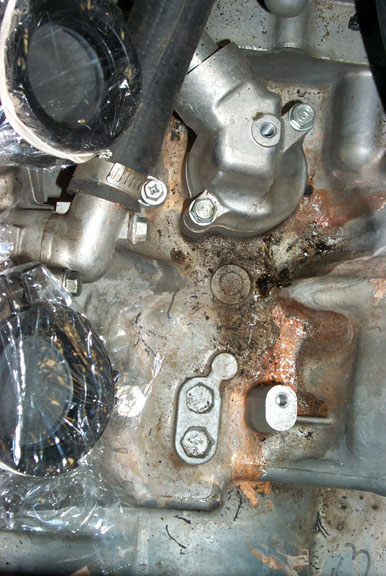

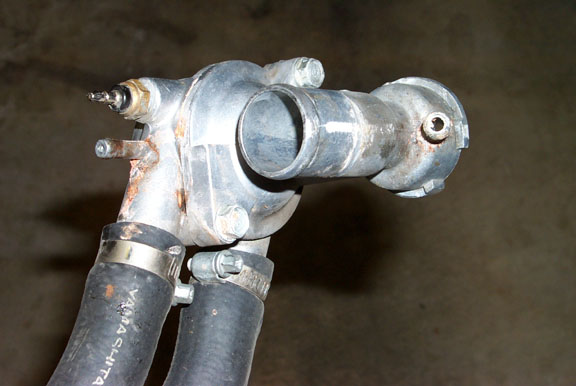

The thermostat housing also shows some evidence of leakage, but it cleaned up nicely.

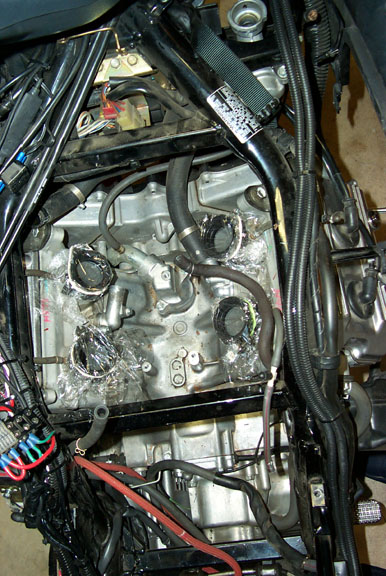

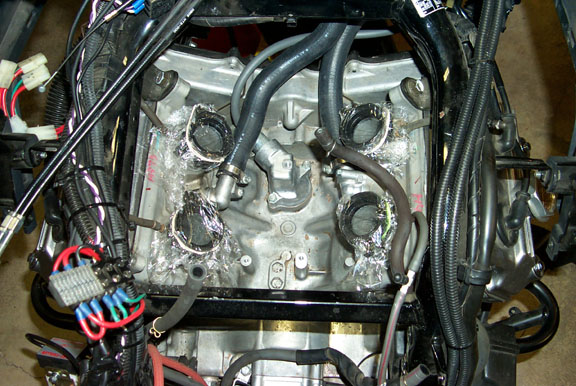

New cooling hoses in place. There will now only be one line to connect before dropping the carbs back in. That would be the carb bowl drain line just visible in the lower right hand corner. There will be plenty of room for cooking road kill in here now! 😉 Click here to see the ‘before PAIR removal’ picture above.

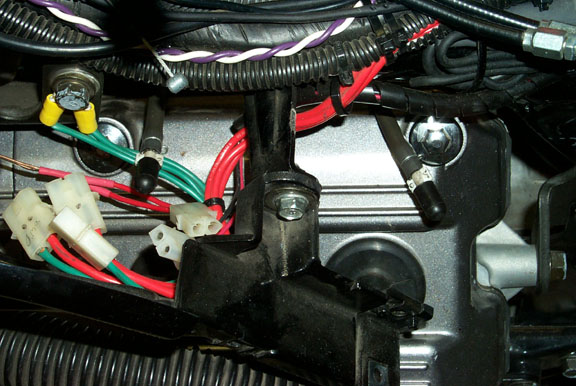

New hoses for carb syncing. I made them longer so they’d be easier to get to.

The other end of the sync tubes.

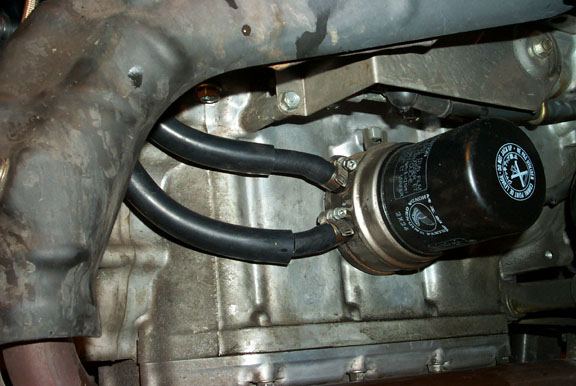

Oil cooler hoses before the change.

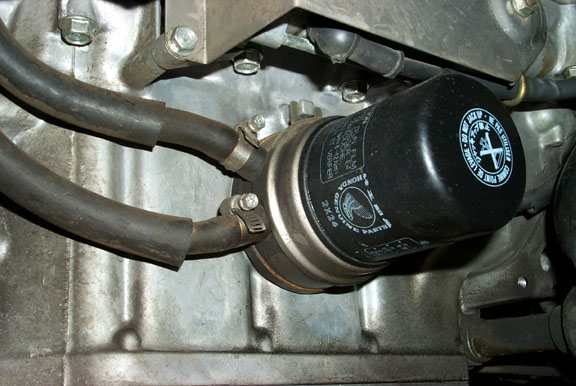

Nice clean new ones. It’s a real pain to get to the clamps at the top ends of these!
