N/Line’s FJR Dash/Shelf

NLine's FJR DashShelfNice piece of work!

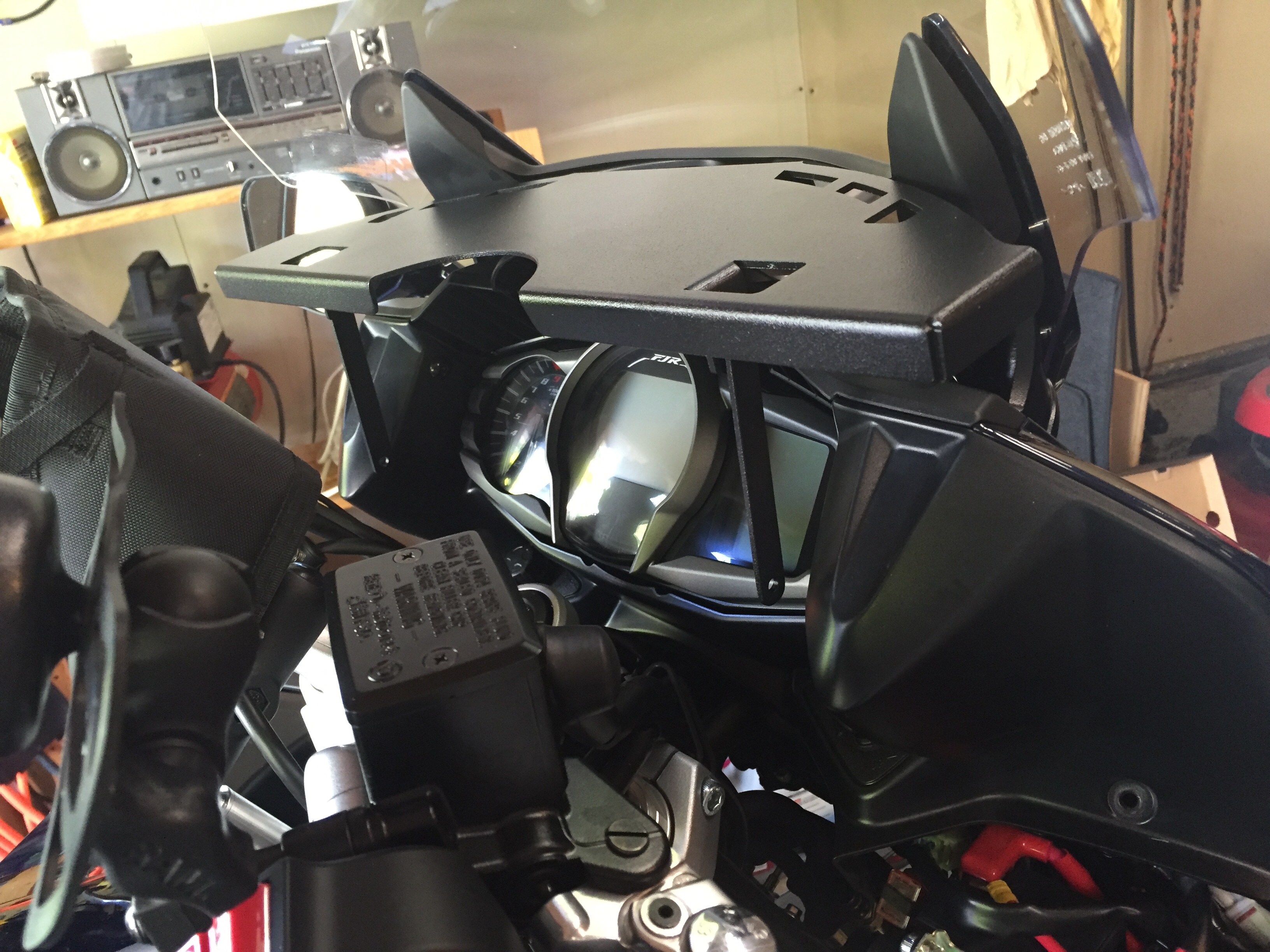

IMG_20160417_110601Test fitting the shelf.

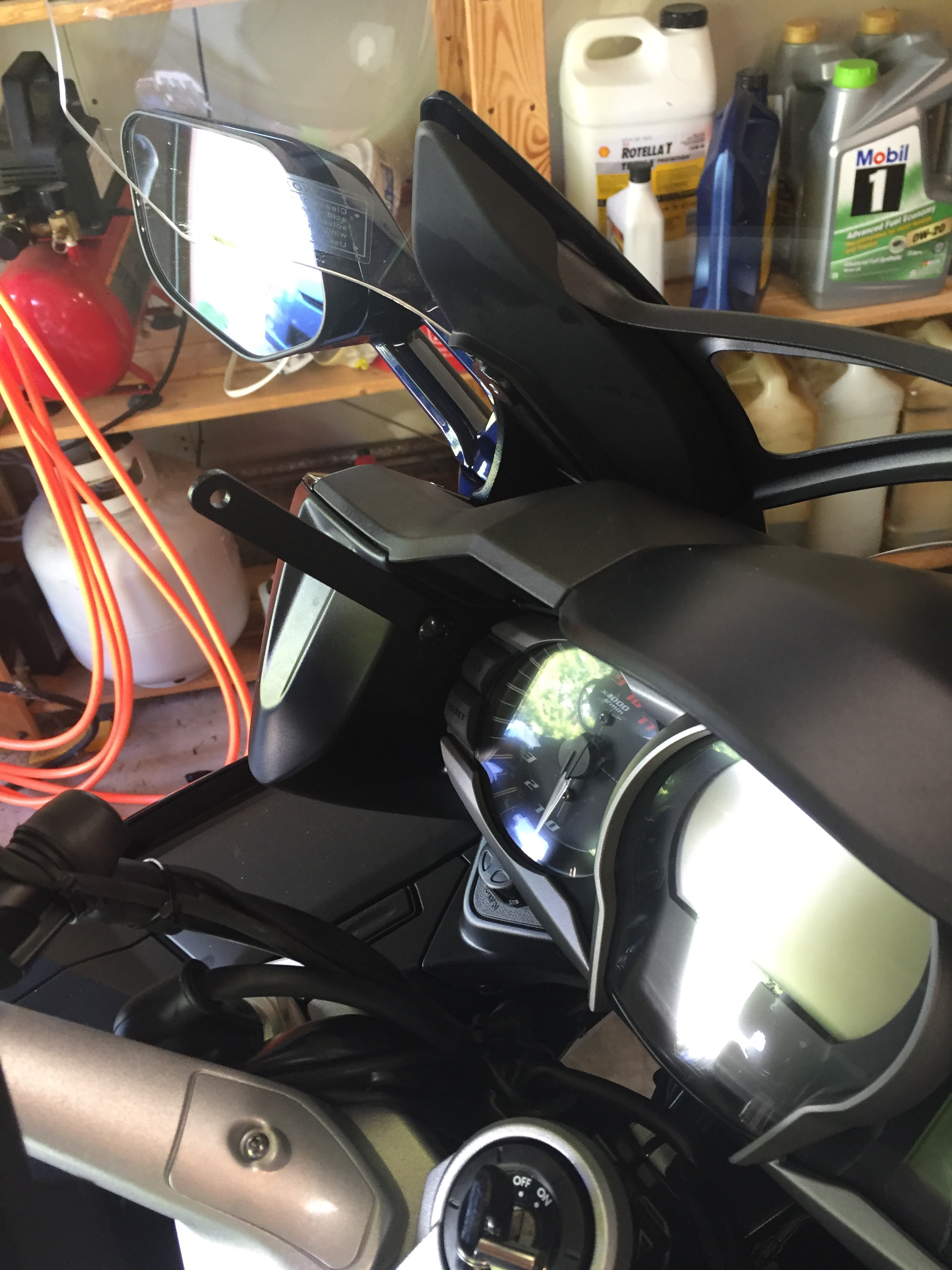

IMG_20160417_110913Decided it would be easiest to install the struts first, then attach the shelf.

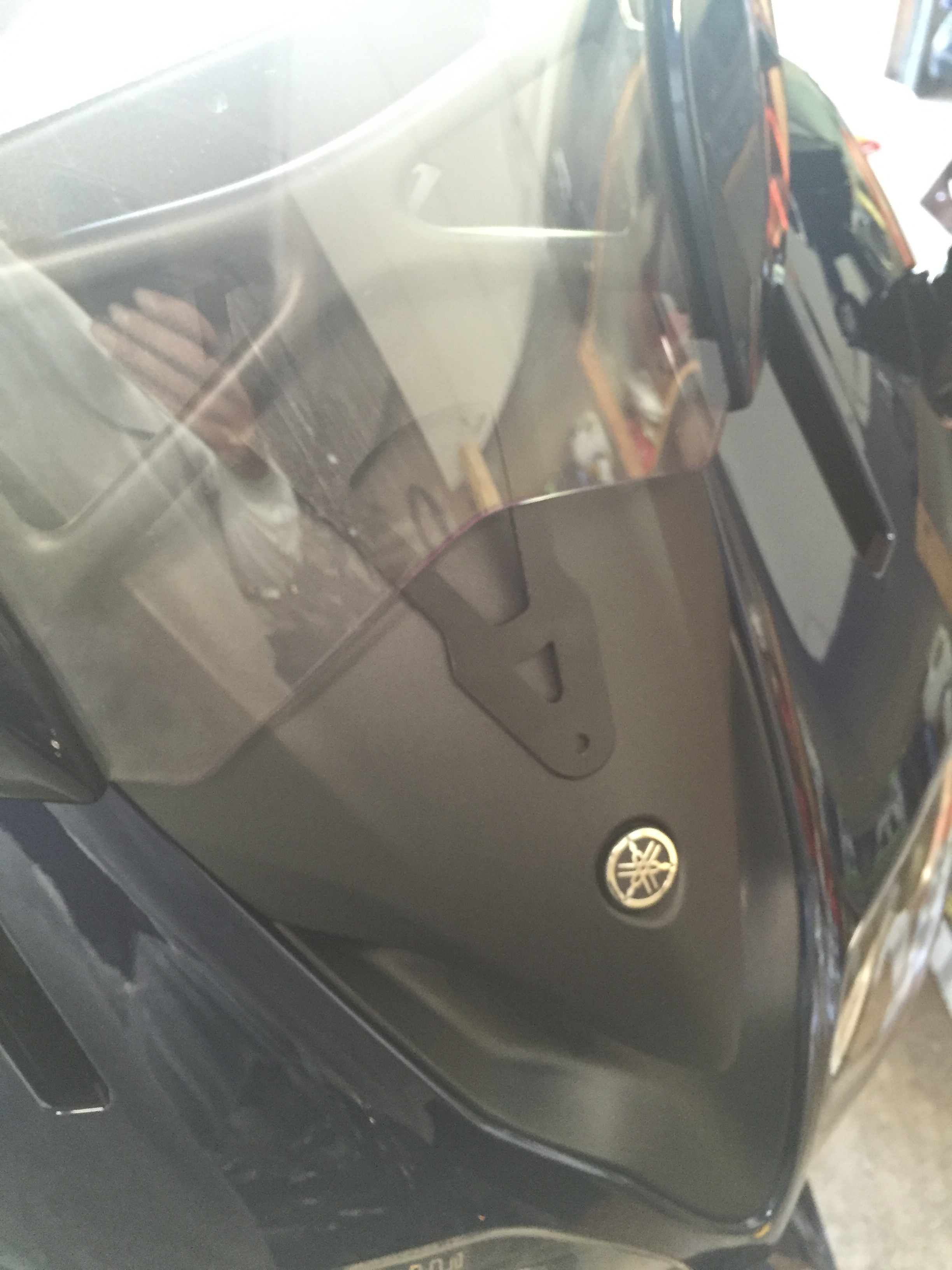

IMG_20160417_113221Trying to figure out where to drill the hole for the front bolt.

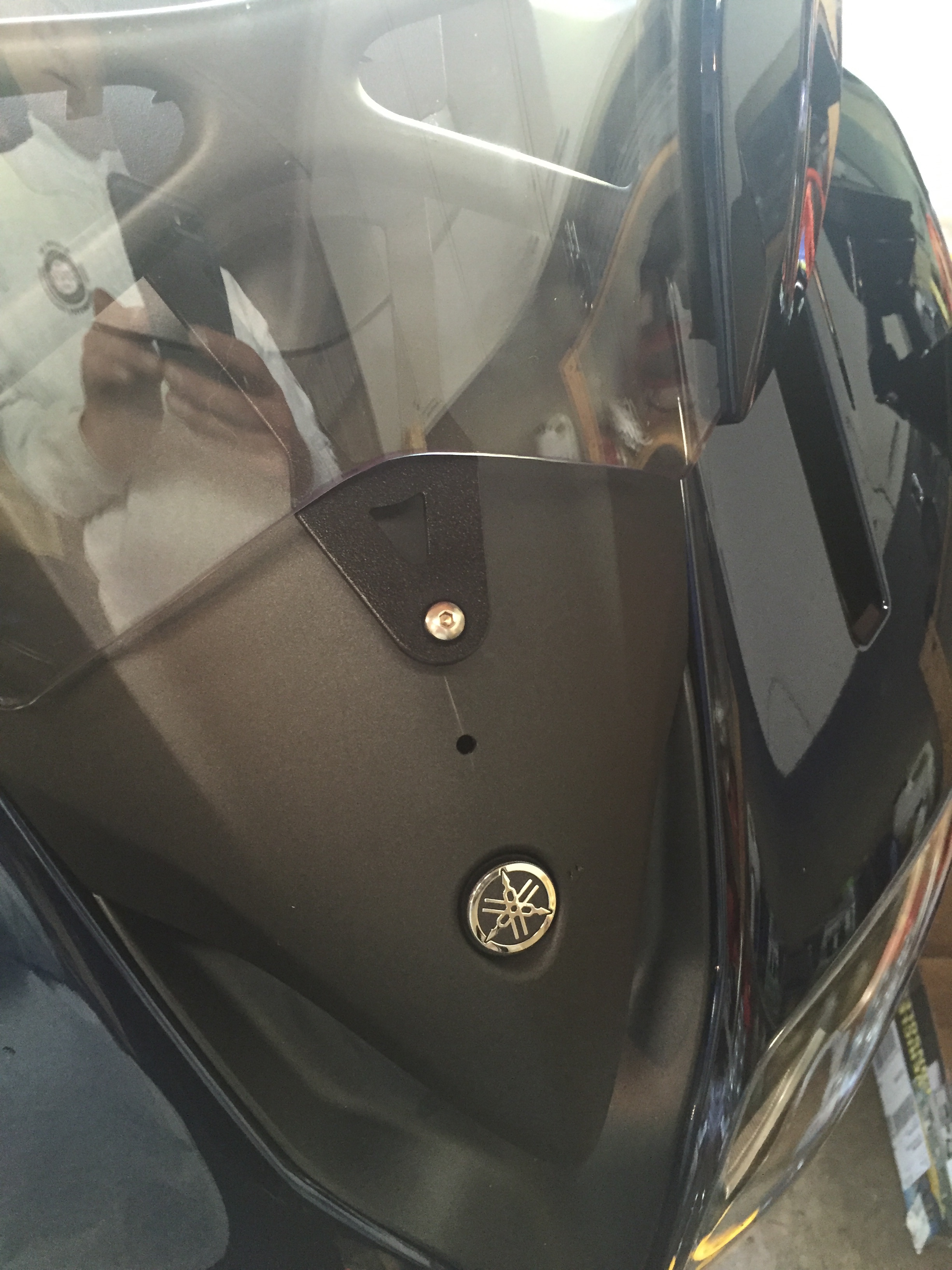

IMG_20160417_113919I drew a line right up the middle of the Yamaha logo, put the screen full up, then moved the shelf forward until it hit the windshield mount bracket. Then I backed it off about an 1/8″.

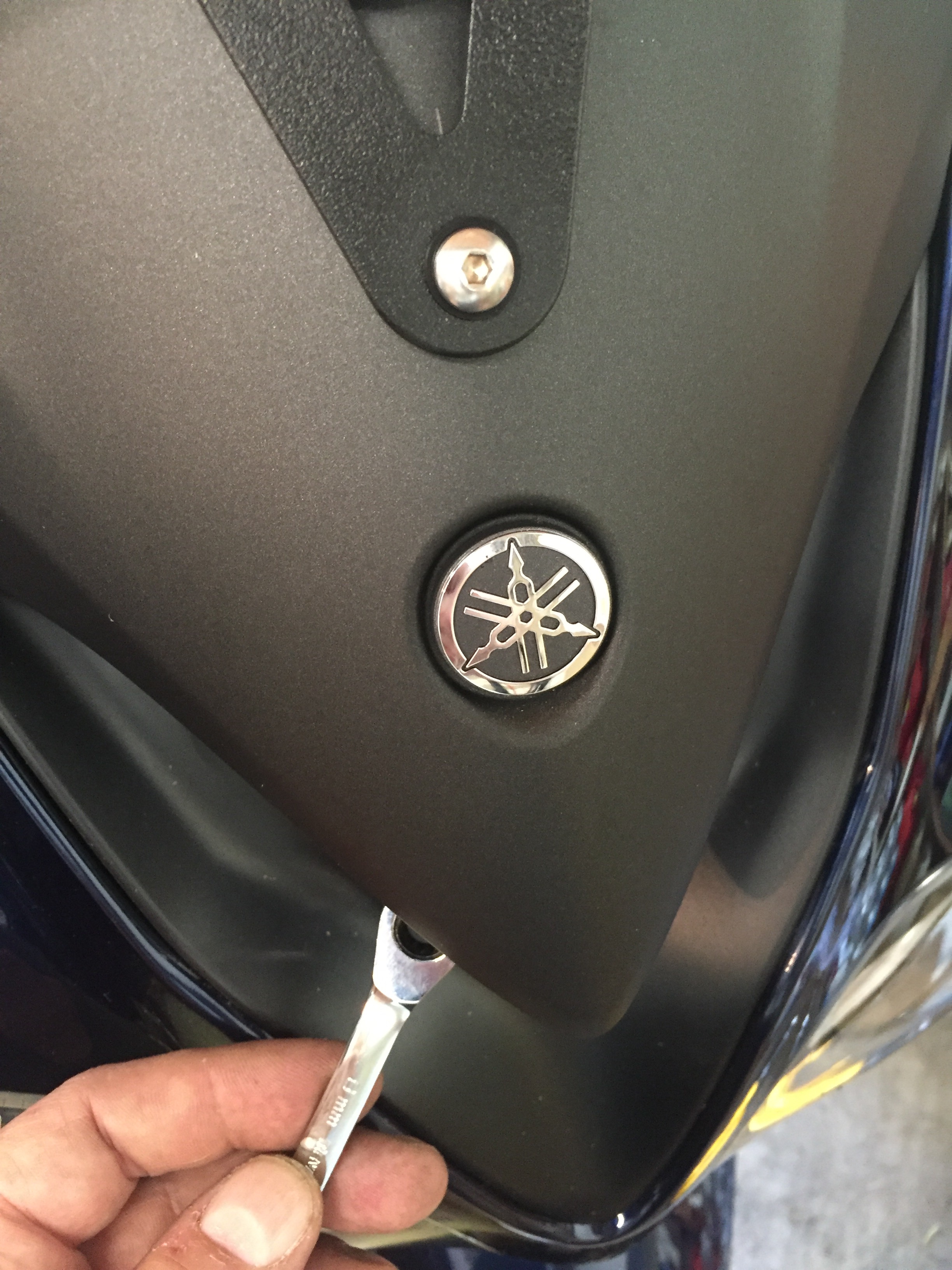

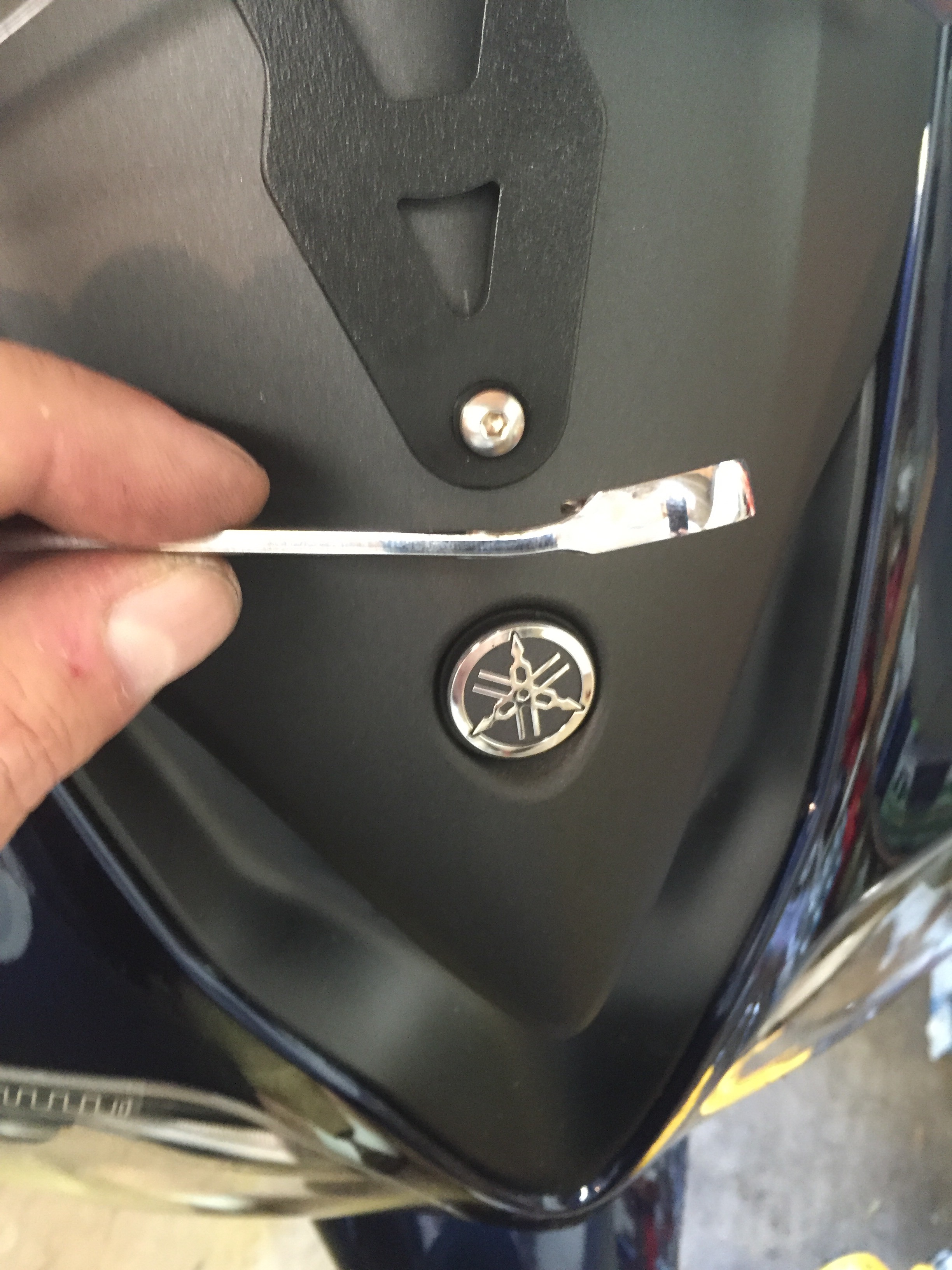

IMG_20160417_114826The back washer and nut are a bit tricky to get installed. I use an angled, ratchet wrench to hold the bolt.

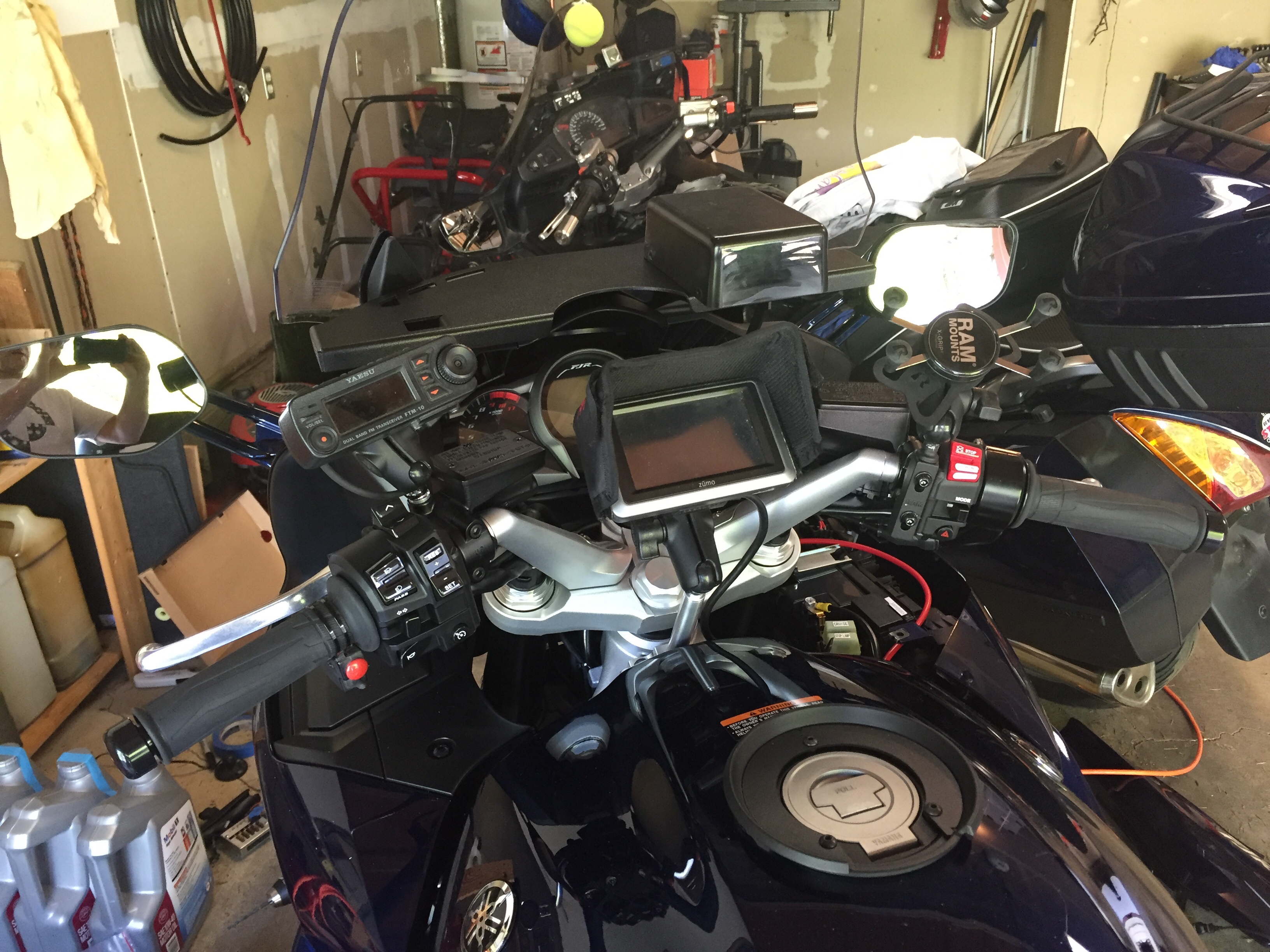

IMG_20160417_114832IMG_20160417_115746IMG_20160417_120405Test locating the devices I plan to mount on the shelf.

IMG_20160512_204510Final layout.


Produced by Scott Cathey

Installation tip: Be sure and put a little Loc-Tite on the bolts and screws when mounting your shelf! I managed to loose one on a recent trip on some bumpy roads in Northern California. Scott kindly sent me replacement parts. Always nice to have excellent customer service and support when purchasing farkles for your bike!
